Product Description

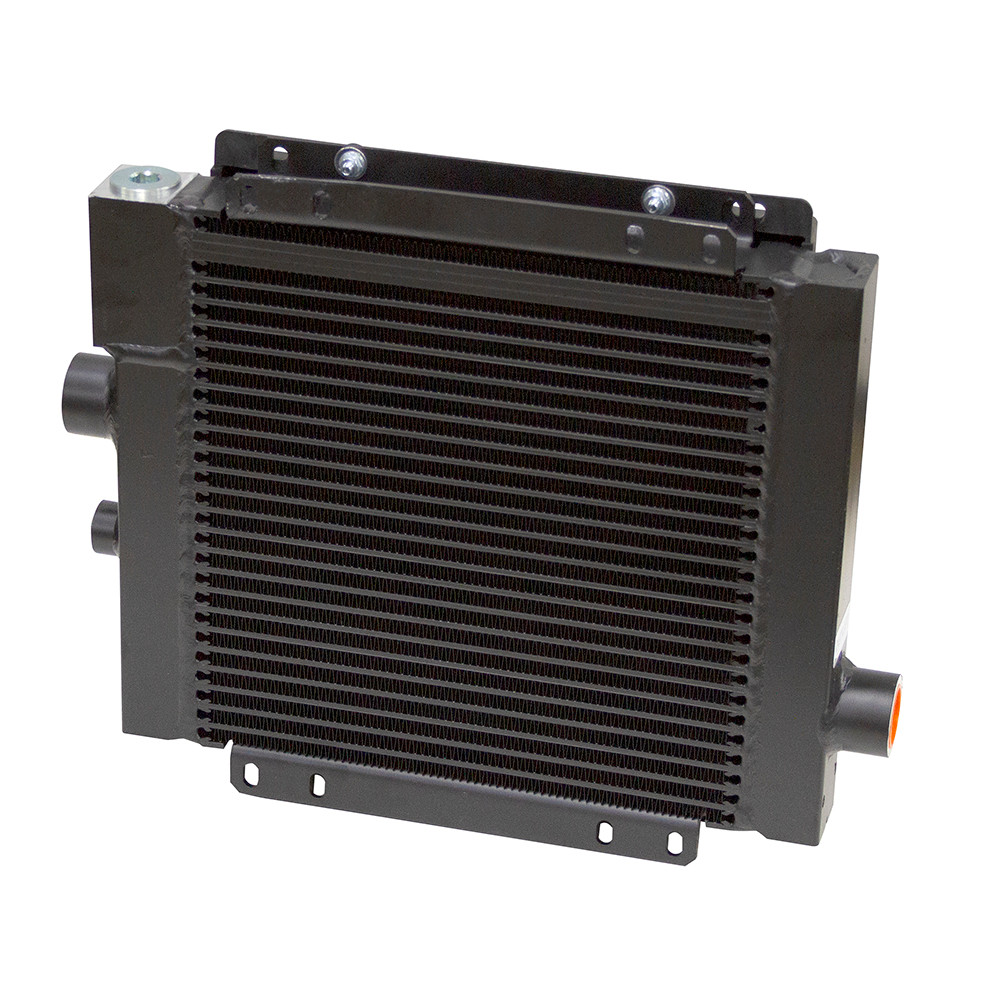

80 GPM AKG DCS20-12-BP65 Oil Cooler w/12 Volt DC Fan and Internal BypassBrand new AKG DCS series oil cooler that features aluminum construction, DC fan, leak-free SAE O-Ring connections, with internal pressure bypass and mounting tabs.
(click here to see the same cooler with slight mounting differences at great savings)
SPECIFICATIONS
- Manufacturer AKG
- Model Number DCS20-12-BP65
- Pressure 261 PSI max.
- Temperature 261 F° max.
- Construction Aluminum
- Flow 80 GPM
- Fan Motor Voltage 12 Volts DC
- Amps 19
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR) 35991 - Airflow Direction Pull
- Port Size SAE 20
- Drain/Temperature Sensor Port Size SAE 8
- Mount Four 7/16" slotted holes on 8.11" x 17.2" centers
- Overall Depth (in.) 7.2
- Overall Width (in.) 19.88
- Overall Height (in.) 18.3
- Shpg. 36 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-12675-20-12-BP
PDF Page Catalog298-85.pdf
Badges made-in-usa,regular-stock
Air Flow Type DC Fan
Heat Rejection Rate 30000 to 69999 BTU/Hr
Max Flow 80 GPM
Voltage 12 Volt DC
