Product Description

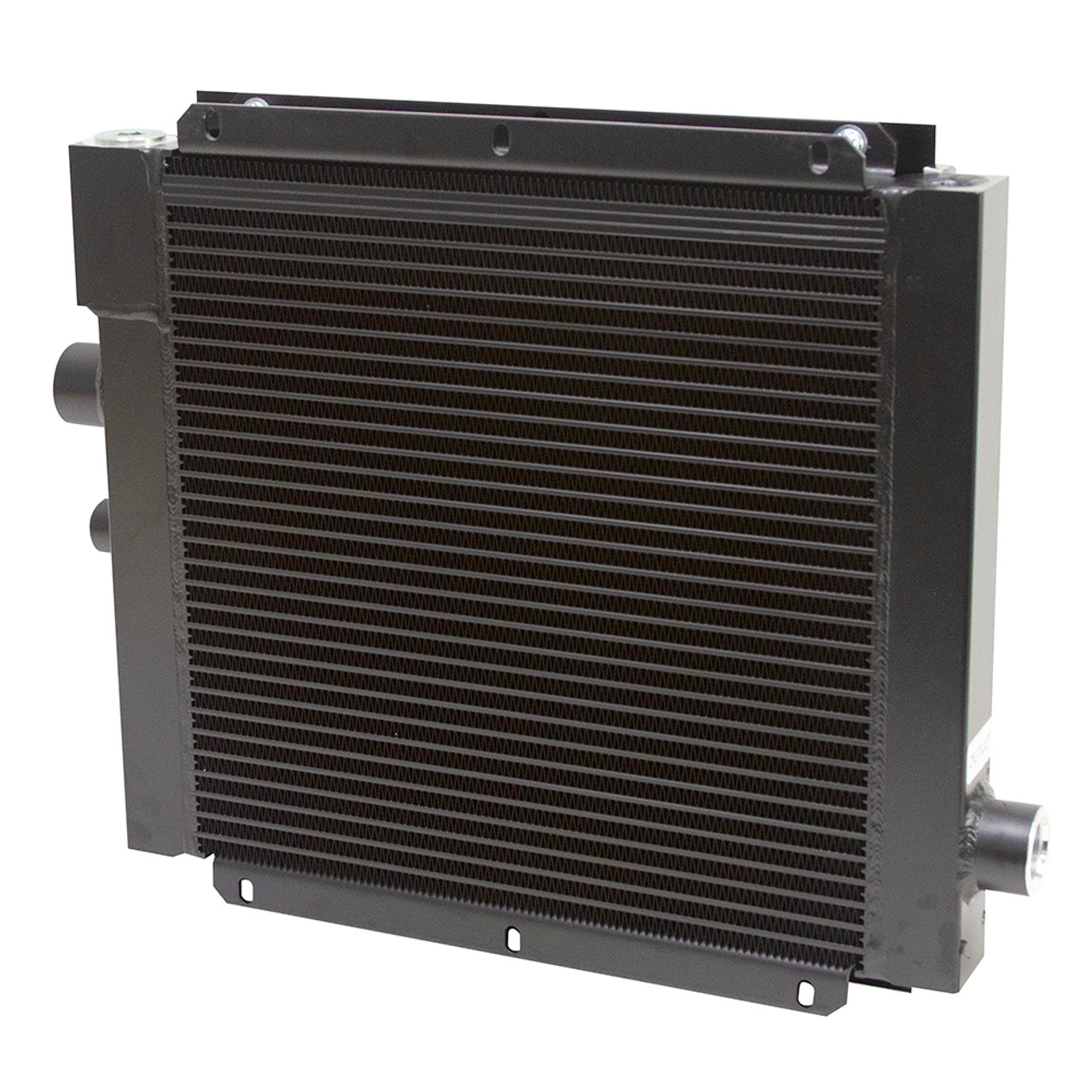

80 GPM AKG DCS30-12-BP65 Oil Cooler w/12 Volt DC Fan and Internal BypassBrand new AKG DCS series oil cooler that features aluminum construction, DC fan, leak-free SAE O-Ring connections, with internal pressure bypass and mounting tabs.
SPECIFICATIONS
- Manufacturer AKG
- Model Number DCS30-12-BP65
- AKG Item # 1103632100
- Pressure 262 PSI max.
- Temperature 262 F° max.
- Construction Aluminum
- Flow 80 GPM
- Fan Motor Voltage 12 Volts DC
- Amps 19
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR) 45077 - Airflow Direction Pull
- Port Size SAE 20
- Drain/Temperature Sensor Port Size SAE 8
- Mount Four 7/16" slotted holes on 7.99" x 20.91" centers
- Overall Depth (in.) 7.2
- Overall Width (in.) 23.62
- Overall Height (in.) 22
- Shpg. 58 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-12675-30-12-BP
Badges made-in-usa,regular-stock
Air Flow Type DC Fan
Heat Rejection Rate 30000 to 69999 BTU/Hr
Max Flow 80 GPM
Voltage 12 Volt DC
Additional Information DCS_Series_Oil_Coolers.pdf
PDF Page Catalog 299-85.pdf
