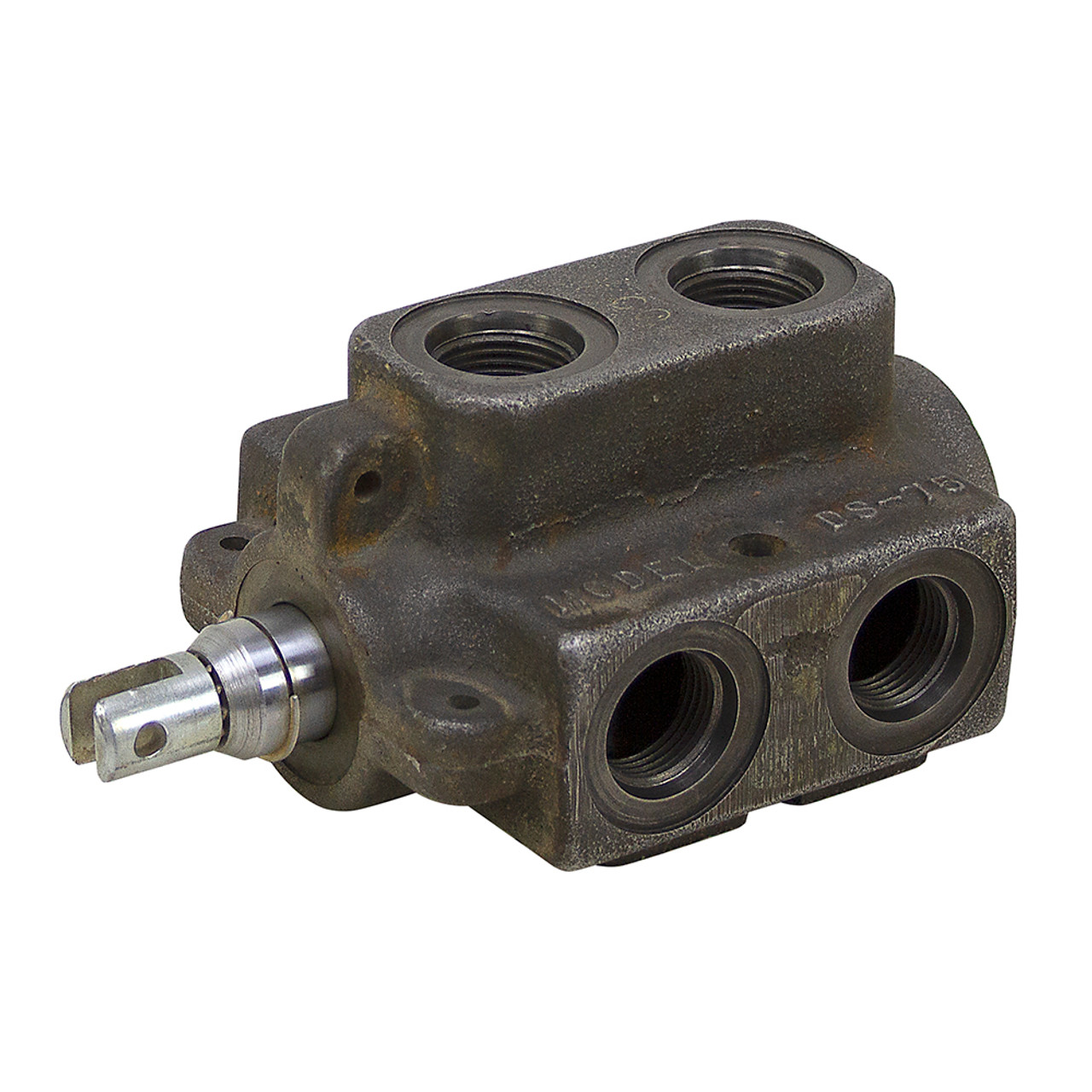

Gresen DS-12 Double Selector Valve [900407]

Product Description

DOUBLE SELECTOR
Unused old inventory. GRESEN DS-12 double selector valve. When plunger is pushed in port A flows to port C and port B flows to port D. When plunger is pulled out port A flows to both port E and port D. Port B flows to port F. All ports are SAE 12 except for port E it is SAE 14.

SPECIFICATIONS

• Ports SAE 12, SAE 14
• Flow 24 GPM max
• Pressure 3000 PSI max
• Mount Two 0.41" bolt holes on 3.25" centers
• Size 8" x 4-1/2" x 3-1/2"
• Shpg 13 lb.
