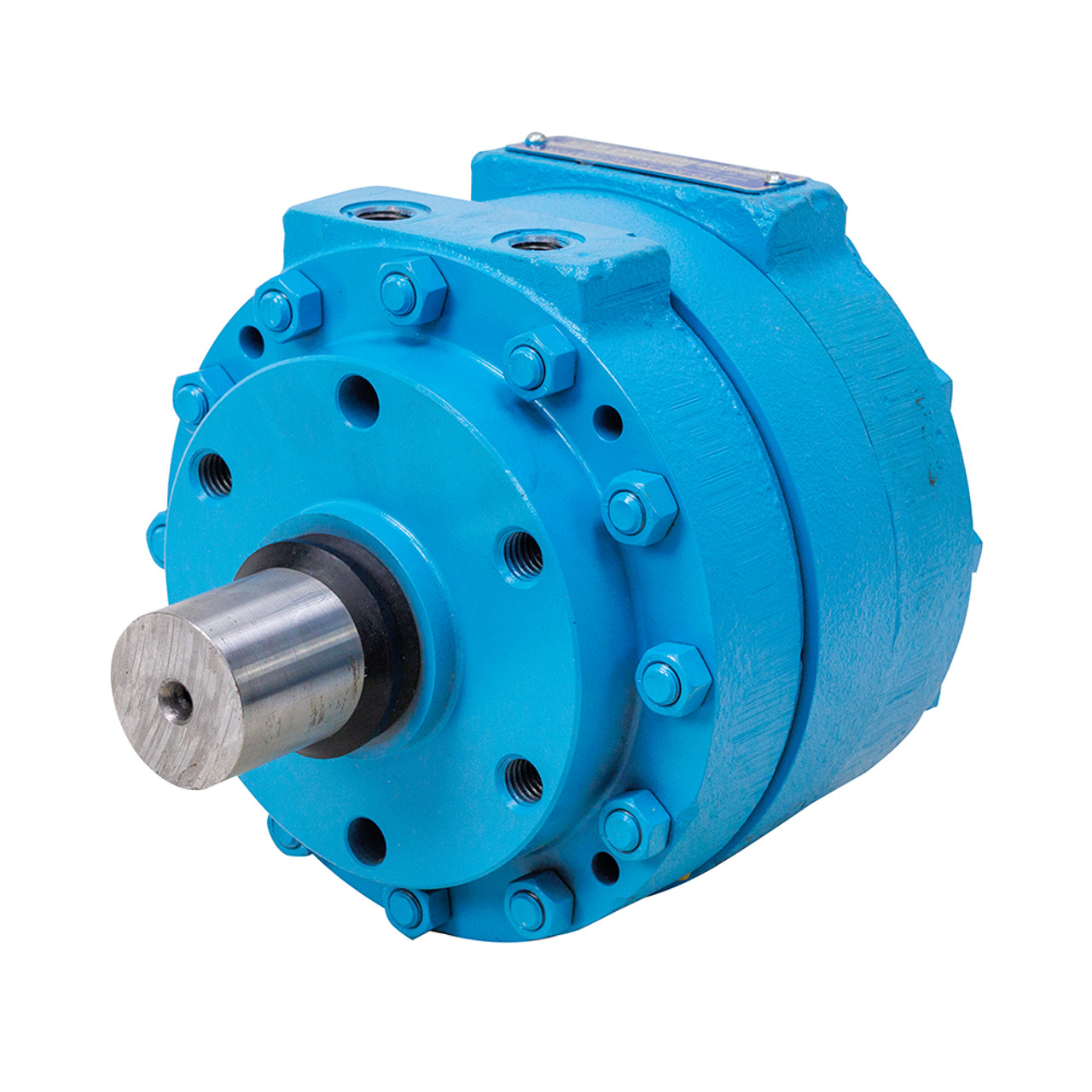

Hydraulic Rotary Actuator Rotac HYD-RO-AC SS0041V [902874]

Product Description

ROTARY ACTUATOR
New, Rotac Hyd-ro-ac SS0041V rotary actuator. Provides the muscle for countless applications involving lifting, turning, indexing, opening, closing, clamping, mixing, bending, testing, steering, and more. (Important Notes to Avoid Actuator Damage) 2,000 PSI maximum is recommended for severe duty applications, such as operating at maximum torque at high cycle rates for extended periods. External stops must be used to limit shaft rotation for most applications. Using the actuators internal components as rotational stops will cause damage. It is critical that the hydraulic system have pressure relief located in close proximity to the actuator to prevent pressure spikes from damaging the actuator. It is recommended the hydraulic fluid be filtered to 5 microns or less (maximum of 10 microns). Unit must be mounted at both ends to prevent torsional racking.

SPECIFICATIONS

• Brand Rotac

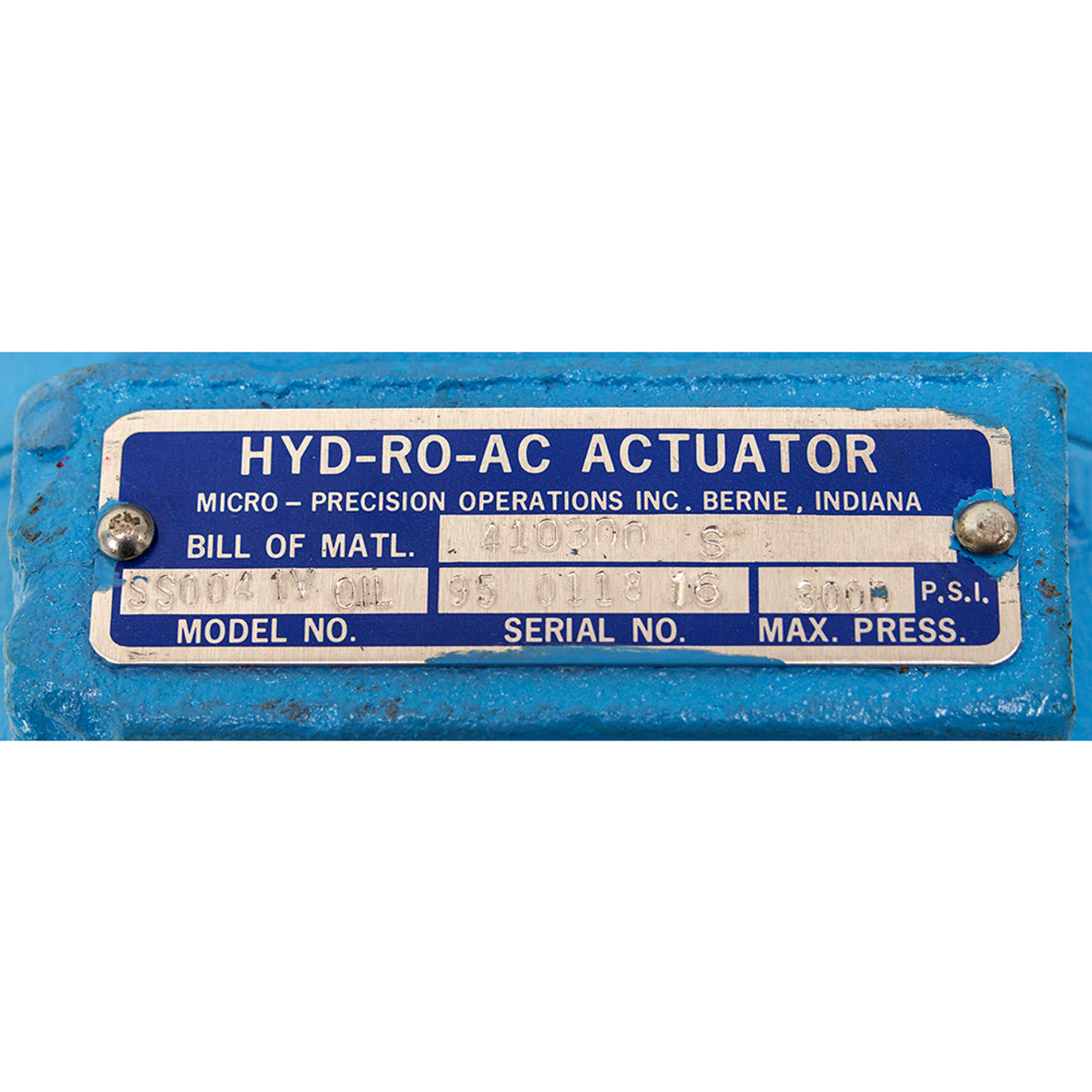

• Model Number SS0041V
• Series SS
• Vane Single Vane
• Max. Pressure 3000 PSI
• Displacement 18.59 cu. in. per 280°
• Torque
      3430 in-lbs @ 1000 PSI
      6860 in-lbs @ 2000 PSI
      10300 in-lbs @ 3000 PSI
• Ports 1/4" NPT (1/4"-18 Tapered)
• Shafts
      1.545" dia. 24 T involute spline
      1.545" dia. plain
• Mounting Both Ends Four 1/2"-13 TPI thread holes on 4" B.C.
• Size 10-1/2" x 6-5/8" x 6-1/2"
• Shpg 49 lbs.
