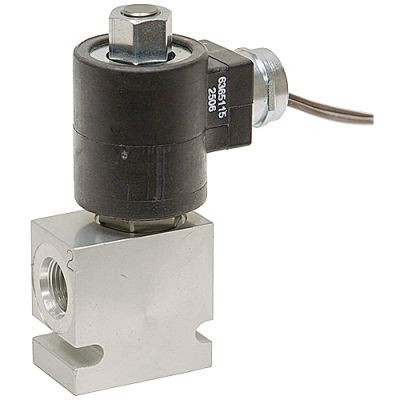

Hydraforce 115 Volt AC NO Solenoid Valve SV10-23-0-N-00 [907075]

Product Description

115 VAC N.O. SOLENOID POPPET VALVE
Brand new, HYDRAFORCE model SV10-23-0-N-00 solenoid-operated, 2-way, poppet type valve. Use for starting, stopping, or dumping of hydraulic circuits to 3000 PSI. Continuous rated solenoid with hardened seat for long life and low leakage.

When de-energized, the valve allows bidirectional flow from port 2 to port 1. When energized, the valve's poppet closes to block flow from port 2 to port 1. In this mode, the cartridge allows free reverse flow from port 1 to port 2, after overcoming the solenoid force (50-150 psi).

SPECIFICATIONS

• Voltage 115 VAC
• Amperage 0.18 Amps
• Flow 12-15 GPM max.
• Pressure 3,000 PSI PSI max.
• Coil Duty Rating Continuous from 85% to 115% of nominal voltage
• Ports SAE 8
• Shpg. 2 lbs.

Valve consists of HydraForce part numbers:
Coil 6365115
Body 7024280
Cartridge SV10-23-0-N-00
