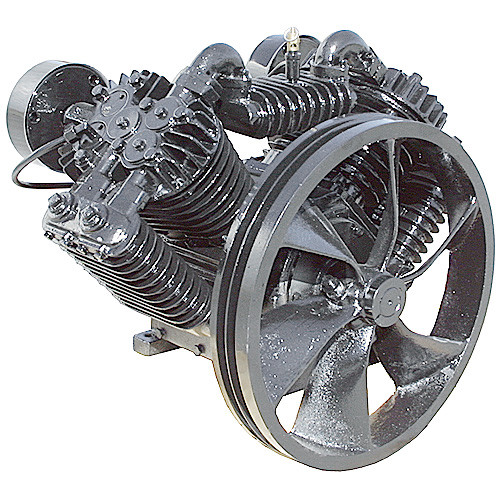

46 CFM Air Compressor Pump Two Stage 10 HP CI10 [400101]

Product Description

CAST IRON 2 STAGE COMPRESSOR
Brand new cast iron compressor model CI-10 designed for heavy duty applications where high air volume and pressure are required along with extra long life. All cast iron including inner and after coolers to reduce air temperature. Low speed gives quieter operation, less vibration. Complete with oil sight glass, unloader valve and safety pop off valve. Ships without oil. Add compressor oil pror to use.

SPECIFICATIONS

• Two stage
• HP Model 10
• Displacement 46 CFM
• Number of Cylinders 4
• CFM 35 at 175 PSI
• Max. RPM 805
• Bore/Stroke
     1st stage 4-1/8" X 3-1/2"
     2nd stage 2-1/8" X 3-1/2"
• Max. Pressure 175 PSI
• Rotation CCW
• Port 3/4" NPT
• Pulley Size 19" dia. 2 groove B belts
• Mounting pattern 9-1/4" x 9-1/2"
• Size 20" X 29" X 28"
• Shpg 315 lbs
