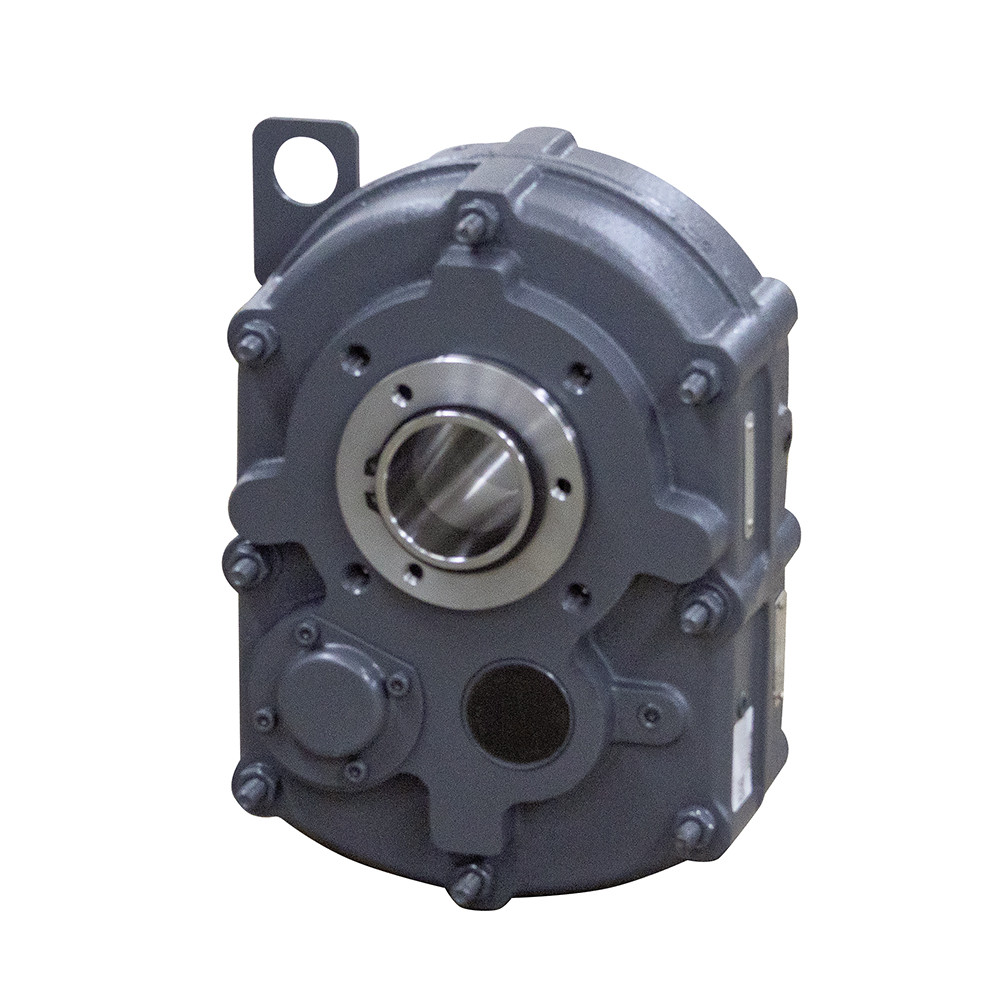

  • 15:1 SCSMR3 Screw Conveyor Shaft Mount Reducer Worldwide SCSMR3-15/1 [604166]
  • 15:1 SCSMR3 Screw Conveyor Shaft Mount Reducer Worldwide SCSMR3-15/1 [604166]
  • 15:1 SCSMR3 Screw Conveyor Shaft Mount Reducer Worldwide SCSMR3-15/1 [604166]

    • 15:1 SCSMR3 Screw Conveyor Shaft Mount Reducer Worldwide SCSMR3-15/1 [604166]

    Item Number: 604166

    Legacy Part Number: 13-3-SCSMR-15

    (No reviews yet) Write a Review

    In Stock

    Regular Stock Item
    $996.95
    Adding to cart… category.add_cart_announcement

    Must ship via Truck Freight

    Please contact us for a quote.

    Product Description

    15:1 SHAFT MOUNT REDUCER
    Brand new, WORLDWIDE ELECTRIC CORP Eliminator screw conveyor shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Ball bearings. Tapered bushing output (bushing not included). Torque arm included. Suitable for screw conveyor applications when used with screw conveyor flange and drive shaft (Not included). Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.

    SPECIFICATIONS

    • Brand WORLDWIDE ELECTRIC CORP
    • Model SCSMR3-15/1
    • Ratio 15:1
    • Input Power see table below
    • Output see table below
    • Torque see table below
    • Input Shaft 1-1/4" diam. X 4-5/16" w/ 1/4" keyway
    • Output Bore see table below
    • Size 9-1/4" x 12-7/8" x 7-9/16"
    • Shpg. 140 lbs.
    Service Class I Service Class II Service Class III
    HP RPM Torque HP RPM Torque HP RPM Torque
    3 28-30 6055-5652 in-lbs 2 16-24 7065-4710 in-lbs 2 24-38 4710-2975 in-lbs
    5 32-50 8831-5652 in-lbs 3 26-46 6521-3686 in-lbs 3 40-70 4239-2422 in-lbs
    7.5 52-74 8151-5728 in-lbs 5 50-74 5652-3819 in-lbs 5 74-105 3819-2691 in-lbs
    10 78-105 7246-5382 in-lbs 7.5 78-105 5434-4037 in-lbs 7.5 110-140 3853-3025 in-lbs
    15 110-140 7707-6055 in-lbs 10 100-140 56252-4037 in-lbs - - -



    OUTPUT BORE OPTIONS
    BORE ITEM # BORE ITEM #
     1-11/16"  13-3-TBK-11116  1-3/4"  13-3-TBK-134
     1-7/8"  13-3-TBK-178  1-15/16"  13-3-TBK-11516
     2"  13-3-TBK-2  2-3/16"  13-3-TBK-2316



    OTHER OPTIONS
     MOTOR MOUNT  13-3-MM
     BELT GUARD  13-3-BG
     SCREW CONVEYOR FLANGE  13-3SCF
     SCREW CONVEYOR DRIVE SHAFT  13-3SCDS-2.716
