Product Description

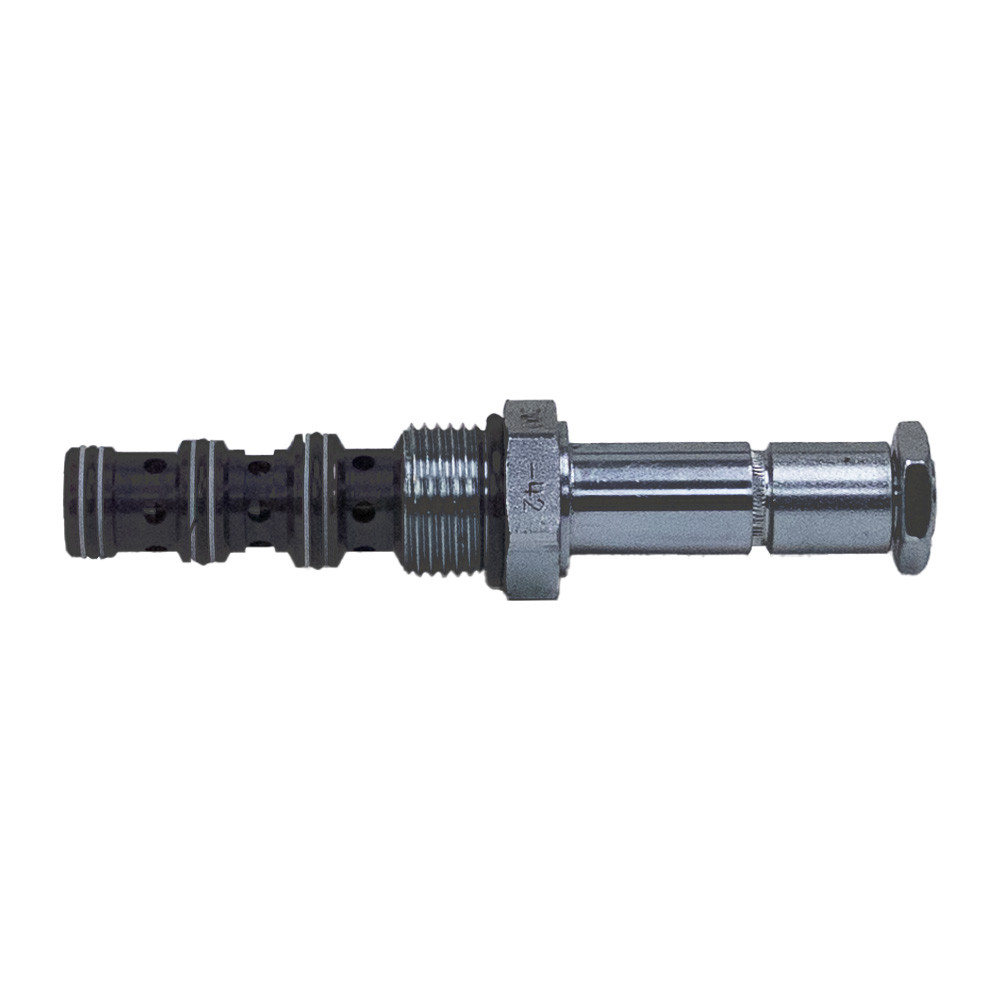

SOLENOID CARTRIDGE VALVE
Brand new Hydraforce SV10-42 solenoid-operated, 4 port, 2 position, direct-acting spool type, normally open, screw in hydraulic cartridge valve. When de-energized, the SV10-42 flow paths are port 3 to port 4, and port 2 to port 1. When energized, the valve's spool shifts to block all ports. (Used on Surplus Center item number 902154)
SPECIFICATIONS
- Brand Hydraforce

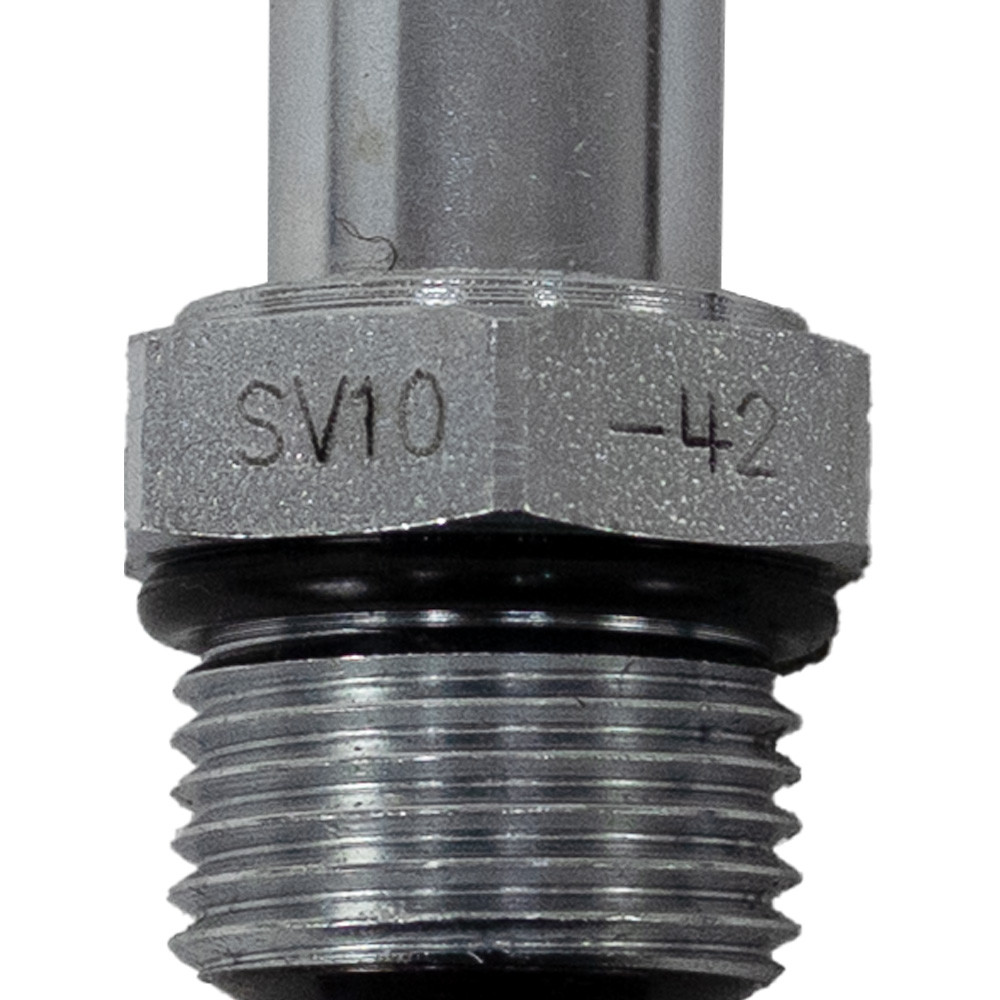

- Model Number SV10-42-0-N-00
- Operating Pressure 3000 PSI
- Proof Pressure 4000 PSI
- Flow Rating 6 GPM
- Temperature -40 to 212°F (-40 to 100°C)
- Cavity VC10-4
- Size 4.84" x 1.00" x 1.00"
- Shpg 0.4 lbs.
| Coils for cartridge SV10-42-0-N-00 | |
|---|---|
| 12 Volt DC coil w/ Wire Leads Hydraforce 6352012 | 900863 |
| 12 Volt DC Coil w/ Spade Terminals Hydraforce 6351012 | 900899 |
| 115 Volt AC Coil w/ Wire Leads Hydraforce 6365115 | 900864 |
| Body for cartridge SV10-42-0-N-00 | |
|---|---|
| Series 10 4-Way SAE 6 Valve Housing Hydraforce 7024460 | 901154 |
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number SV10-42-0-N-00
Badges made-in-usa,regular-stock
Additional Information as901838.pdf
Dimensional Diagram dr901838.pdf
Wiring Diagram w901838.pdf
Valve Type Solenoid Valves
