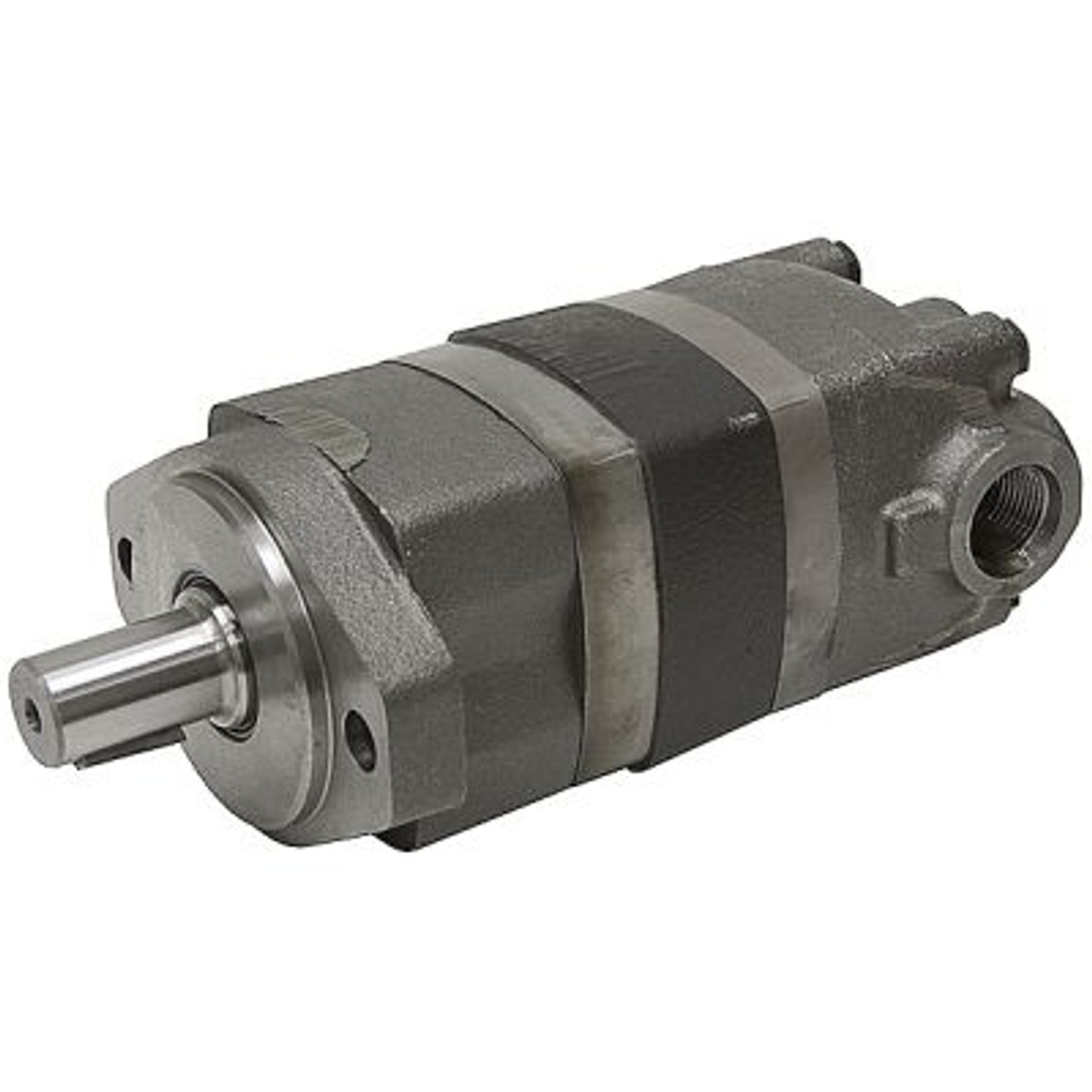

11.9 cu in Char-Lynn 104-1065 Hydraulic Motor [900158]

Product Description

11.9 cu in CHAR-LYNN 104-1065 HYD MOTOR
Brand new CHAR-LYNN 2000 series hydraulic motor. Geroler power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Interchangeable with the following motor lines: Dynamic BMS, Danfoss OMS/OMSS, White RE/DH, Parker/Ross MB/TF.

SPECIFICATIONS

• Disp. 11.9 cu. in. / rev.
• Motor Type Geroler
• Pressure:
    3000 PSI cont.
    3750 PSI int.
• Torque:
    4780 in-lbs. cont.
    5890 in-lbs. int.
• Speed:
    385 RPM cont.
    577 RPM int.
• Flow:
    20 GPM cont.
    30 GPM int.
• Rotation Reversible
• Mount 2 bolt SAE A
• Shaft 1-1/4" dia. x 2-3/16" long with 5/16" keyway, tapped 3/8-16
• Ports SAE 12
• Case Drain SAE 4
• Size 8" x 5-1/8" x 4-1/4"
• Shpg. 28 lbs.
