Product Description
12 VDC LINEAR ACTUATORNew, linear actuator originally made for use in electric automotive seats. No clutch or limit switches. Permanent magnet type motor. Traveling nut has 7/8" wrench flats. Socket at rear of motor for 1/8" square drive cable. Output to right when viewed from motor end with output shaft above motor centerline.
SPECIFICATIONS
- Voltage 12 VDC
- Amps 1.5 no load
- Output Orientation RH
- Travel 2-1/4"
- Extension time 6 seconds full travel
- Rotation reversible
- Enclosure Fully enclosed
- Duty Intermittant
- Mount 1/4" clevis, 3/8" between ears
- Shaft 7/16"-8 ACME thread w/M6x1 LH at end
- Overall size 6" x 2-1/2" x 5-1/2"
- Shpg. 3 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 5-1761-R
Badges surplus-item,last-one
Load Rating Up to 199 lbs.
Stroke Up to 3.99''
Voltage 12 Volt DC
PDF Page Catalog 299-145.pdf

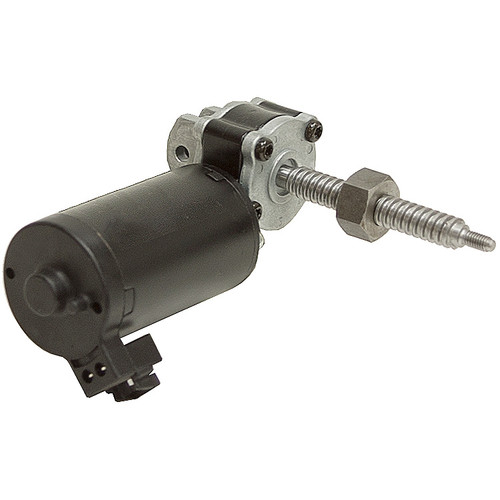

![2.25" Stroke 12 Volts DC Linear Actuator F680N - Right [500697]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/5999/97411/5-1762-R__74415.1762805666.jpg?c=1 "2.25\" Stroke 12 Volts DC Linear Actuator F680N - Right [500697]")
