    Item Number: 907142

    (No reviews yet) Write a Review
    Surplus Item
    $199.95
    Adding to cart… category.add_cart_announcement

    Product Description

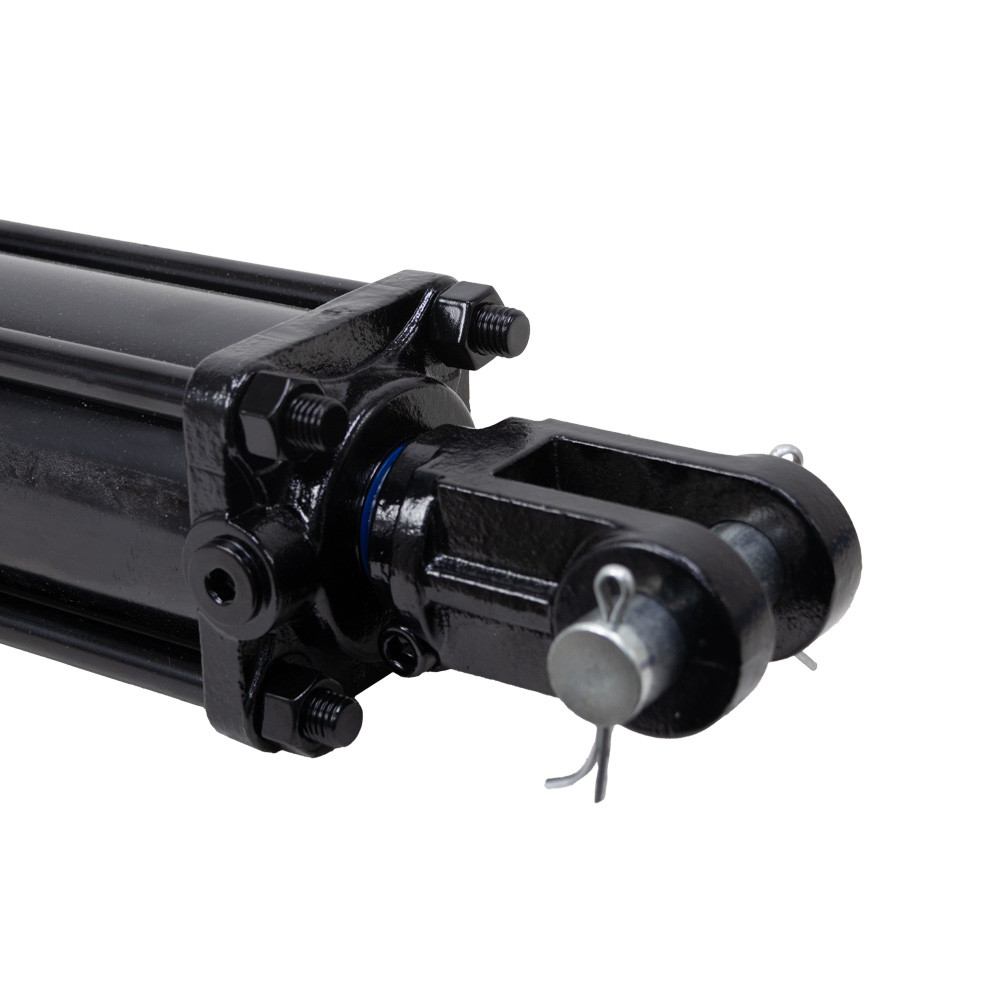

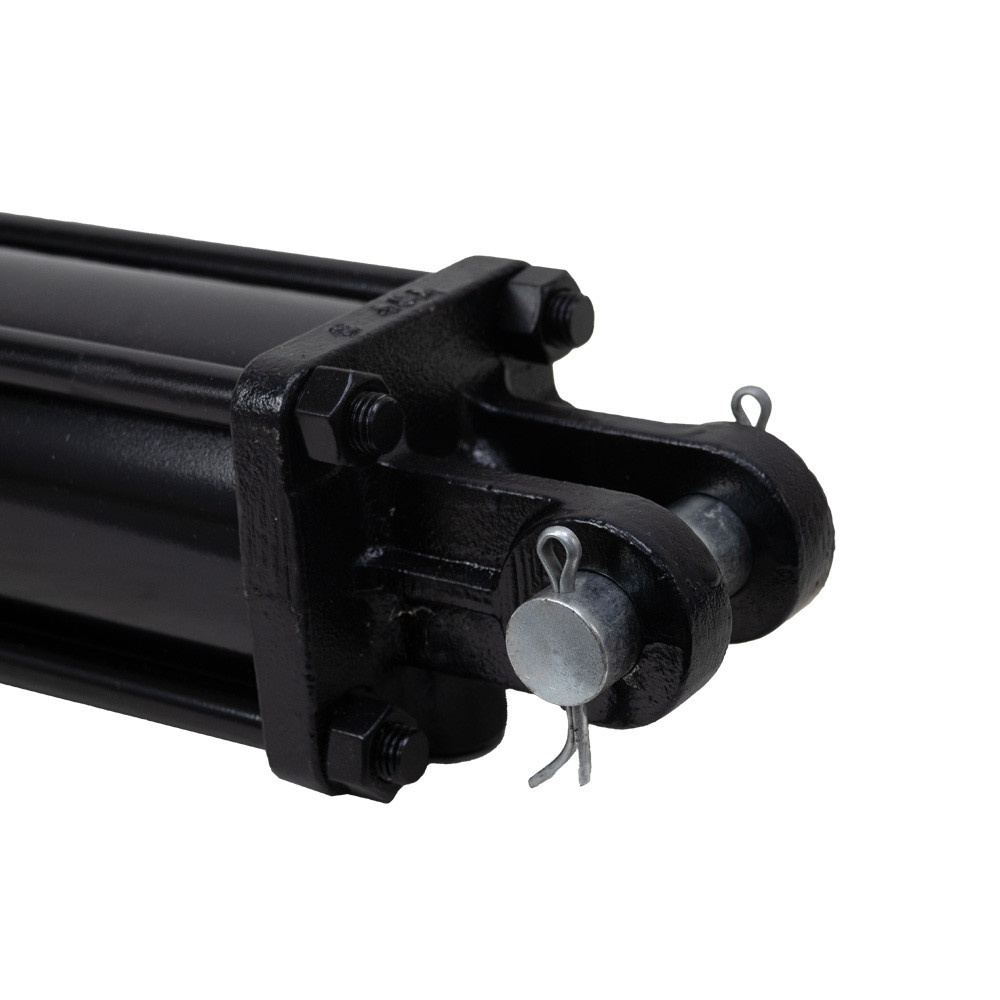

    3.5" x 30" x 1.5" DOUBLE ACTING HYDRAULIC CYLINDER
    New Premium Supply PCT3530ORB tie-rod double acting hydraulic cylinder. Features a ductile iron precision machined piston providing a malleable bearing surface for extended cylinder life and a high tensile steel, hard chrome plated rod providing extended cylinder life in harsh applications.

    SPECIFICATIONS
    • Brand Premium Supply
    • Model Number PCT3530ORB
    • Double Acting
    • Bore x Stroke 3.5" x 30"
    • Gland Retainer Tie-rod
    • Pressure 2500 PSI max.
    • Rod Dia. 1.5"
    • Column Load 24053 lbs.
    • Ports SAE 8
    • Retracted Length 40.25"
    • Gland Face to Rod Pin Center 3.5"
    • Shpg. 67 lbs.
    END MOUNTINGS
    • Rod End Clevis
    • Outside Width 2.625"
    • Inside Width 1.125"
    • Throat Depth 2.125"
    • Pin Hole 1"
    • Rod End Clevis
    • Outside Width 2.5"
    • Inside Width 1.125"
    • Throat Depth 2.06"
    • Pin Hole 1"

    Product Videos

    Custom Field

    Prop65 true
    Badges surplus-item,last-one
    Bore Range1 3" - 3.9"
    Stroke Range1 30" - 35.9"
    Rod Dia 1.5"
    Retracted Length 36" - 47.9"
    Construction Type Tie-Rod
    Max PSI Up to 2500 PSI
    Rod End Clevis
    Base End Clevis
    Rod End Pin Size 1"
    Base End Pin Size 1"
    Stroke 30"
    Ports SAE

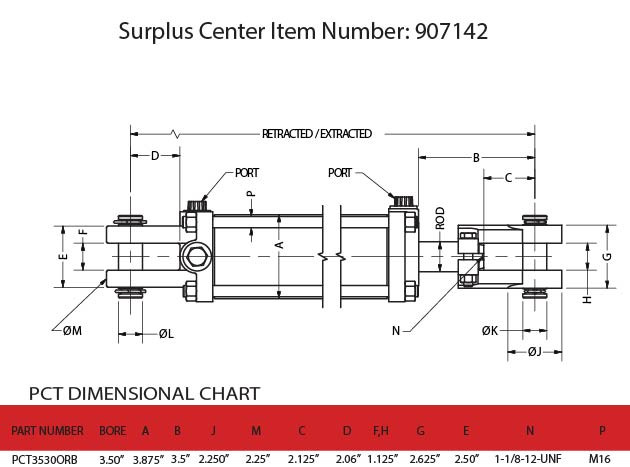

    Dimensional Diagram dr907142.pdf
