3x16x1.75 Double Acting Tandem Hydraulic Cylinder [902657]

Product Description

3" x 16" x 1.75" DOUBLE ACTING DOUBLE ROD HYDRAULIC CYLINDER

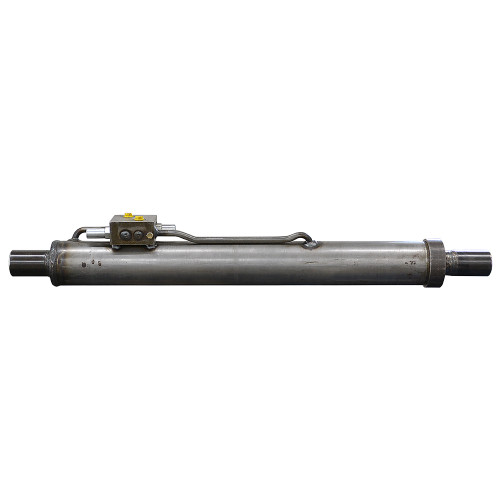

Unused old inventory. MCNEILUS 1001 A 8104F 420968 double rod welded cylinder with thread-on gland caps. Two independent 3" x 16" x 1.75" cylinders joined in the middle. Four SUN model CACA-LHN vented counterbalance valves with 3:1 pilot ratio and 15 GPM capacity, factory set at 1850 PSI. Each cylinder has two bleeder valves welded to barrel, one at base end, one at rod end. Retracted length measured end of rod to end of other rod.  These cylinders are unpainted steel and have surface rust.

SPECIFICATIONS
Double Acting Bore x Stroke 3" x 16" Barrel Thickness 0.1875" Pressure 3000 PSI max. Rod Dia. 1.75"	Ports SAE 6 Retracted Length 72" Shpg. 107 lbs.

END MOUNTINGS
Rod Ends Tapped Thread size-Pitch 1-1/8"-12 Thread Length 3"
