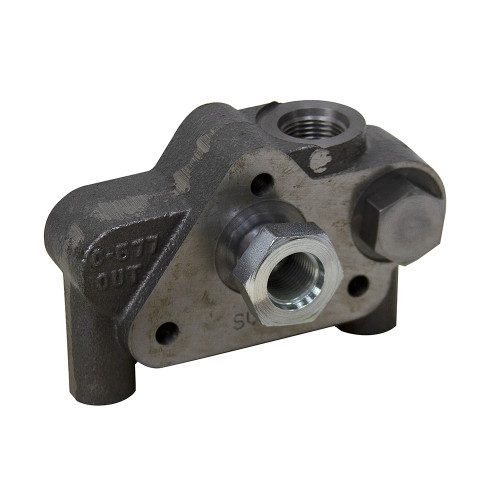

![SVE22 Prince SV SAE 10 Open Center w/Power Beyond Outlet Section [900501]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/1280x1280/products/638/107182/9-SVE22__03112.1762808001.jpg?c=1 "SVE22 Prince SV SAE 10 Open Center w/Power Beyond Outlet Section [900501]")
![SVE22 Prince SV SAE 10 Open Center w/Power Beyond Outlet Section [900501]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/1280x1280/products/638/107183/9-SVE22_1__31037.1762808001.jpg?c=1 "SVE22 Prince SV SAE 10 Open Center w/Power Beyond Outlet Section [900501]")
![SVE22 Prince SV SAE 10 Open Center w/Power Beyond Outlet Section [900501]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/100x100/products/638/107182/9-SVE22__03112.1762808001.jpg?c=1 "SVE22 Prince SV SAE 10 Open Center w/Power Beyond Outlet Section [900501]")
![SVE22 Prince SV SAE 10 Open Center w/Power Beyond Outlet Section [900501]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/100x100/products/638/107183/9-SVE22_1__31037.1762808001.jpg?c=1 "SVE22 Prince SV SAE 10 Open Center w/Power Beyond Outlet Section [900501]")
Product Description
OUTLET SECTION SV SECTIONAL CONTROL VALVE
Brand new PRINCE outlet section for SV sectional control valves. Top and side outlet ports. Power beyond conversion sleeve installed on side. Open center with power beyond hydraulic systems.
SPECIFICATIONS
- Open Center w/Power Beyond
- Model Number SVE22
- Flow 12 GPM max.
- Pressure 3000 PSI max.
- Ports SAE 10
- Port Power Beyond SAE 8
- Mount 2 hole base on 3.88" bolt center tapped 3/8"-16
- Size 5.125" x 2.5" x 3.44"
- Shpg. 4 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-SVE22
Badges made-in-usa,regular-stock
Dimensional Diagram i9SV.pdf
PDF Page Catalog 299-26.pdf
